(LF) PowerTwo
Ideal for high-strength through-bolt connections and space-saving applications due to double-sided PCB mounting
(LF) PowerTwo Press-fit Powerelements are REACH and RoHS compliant, consist of two Powerelements and are ideal for mounting through a PCB. They provide a permanent, reliable connection without stressing the PCB.
Depending on the pin configuration and the layout, currents of up to 500 Amps are possible.
Note:The push-in element is not intended for contacting components or for current injection
Product overview PowerTwo (PDF)
A lead-free version (LF PowerTwo) of the PowerTwo Powerelements is also available:
Key information at a glance
Application possibilities
- Contacting / fastening of switches, fuses, etc.
- Wire-to-board for screwing ring cable lugs
- Board-to-board
- Electromechanics such as housing fastening and spacers
From sample to market
Samples are available even in small quantities. Individual Powerelements for series production are also no problem.
Just tell us what you need!
Packaging
Flexible packaging options: bulk, trays or in blister on reel for cost-effective assembly. In addition, you have the option to package the items in ESD blister tape, optionally with Kapton stickers or completely in your desired packaging.
Application possibilities
For contacting and fixing switches, fuses, IGBTs, etc.
Application possibilities
For contacting and fixing switches, fuses, IGBTs, etc.
The (LF) PowerTwo Powerelements are ideal for attaching components such as fuses, switches or IGBTs to the PCB. Learn more about these and other interconnect solutions now.
Processing options for (LF) PowerTwo Powerelements
MPFT (Massive Press Fit Technology)
Massive press-fit technology is the process of pressing solid pins into an electrically plated-through hole in a printed circuit board. Powerelements for press-fit technology have excellent mechanical and electrical properties, making them ideal for use in harsh environments such as high temperature fluctuations or vibration. The press-fit process creates a high performance, gas-tight cold welded connection with a contact resistance of just a few μOhm. This ensures very high current carrying capacity through low resistance contact points.
PCB design
Printed circuit boards must be designed in accordance with the latest edition of IPC A 600. In the case of solid press-fit technology, the PCBs must be designed in accordance with the Würth Elektronik ICS Press-fit Specification. Special attention should be paid to hole diameter and copper thickness.
Further information
Torques
Torque values for the various thread dimensions are listed on the Technology section. Different material combinations or thread lengths for bushings are not considered. Depending on the thread length, the bushings can be tightened to higher torques. Please note that self-locking nuts are not permitted for LF PowerPlus Powerelements.
Current carrying capacity
The current carrying capacity must always be considered in the context of the overall system. Our measurements have shown that the limiting factor is usually the PCB layout or the connection of external leads (contact resistance press-in zone 100-200 μΩ).
Qualification
(LF) PowerTwo Press-fit high current contacts have successfully passed vibration test and mechanical shock test according to ISO 16750-3 standard. Vibration test according to ISO 16750-3:2012 4.1.2.7 Random test VII Mechanical shock test according to ISO 16750-3:2012 4.2.3 Severity 2.
Matching PowerTwo combinations
Exemplary illustration of a (LF) PowerTwo press-in element as bolt and bush
PowerTwo Base Element | PowerTwo Press-in Element |
|---|---|
K90500 | K96961; K96695; K90506 |
K94720 | K96961; K96695; K90506 |
K96802-Q | K92265; K97070 |
K91071 | K94371; K91411; K96963; K93845; K91082; K91074; K91126 |
K90550 | K94371; K91411; K96963; K93845; K91082; K91074; K91126 |
K96580 | K94371; K91411; K96963; K93845; K91082; K91074; K91126 |
K90211 | K94371; K91411; K96963; K93845; K91082; K91074; K91126 |
K90571 | K96968; K96448; K92100 |
K91070 | K95652; K96576; K95652; K91122 |
K95646 | K95652 |

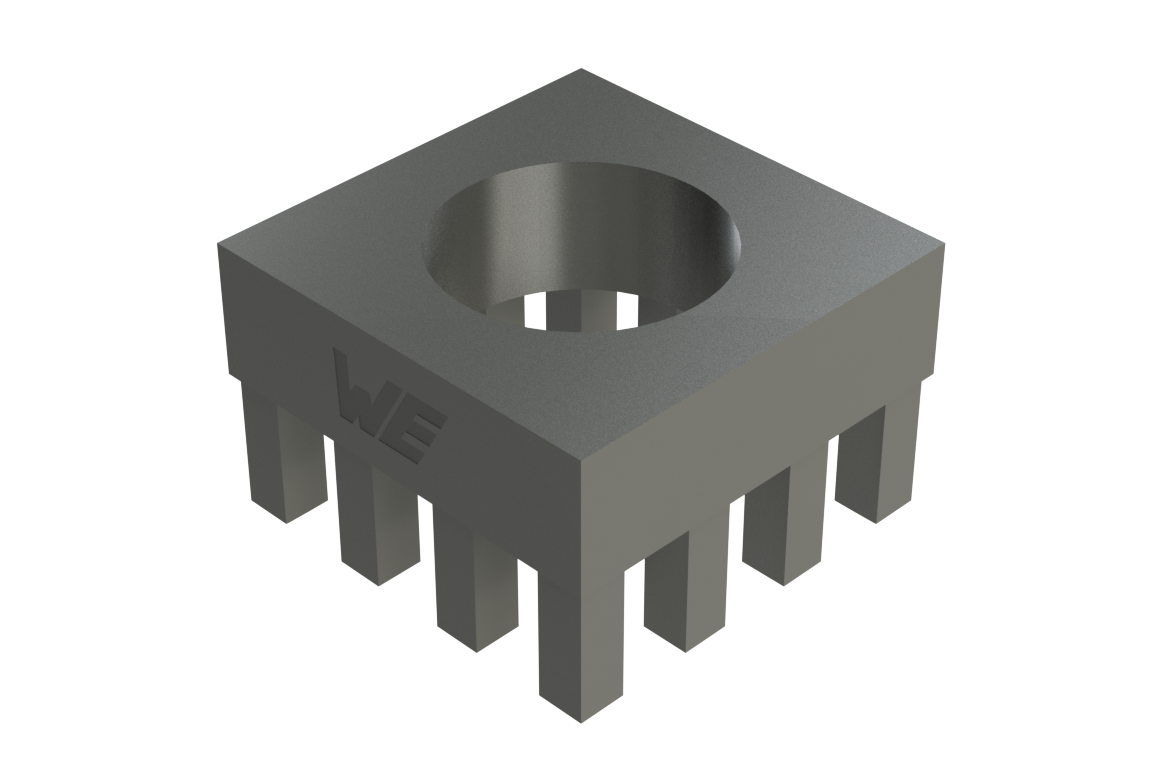

Exemplary illustration of a (LF) PowerTwo basic element
PowerTwo Press-in Element | PowerTwo Base Element |
|---|---|
K90506 | K90500; K94720 |
K91126 | K91071; K90550; K96580; K90211 |
K91074 | K91071; K90550; K96580; K90211 |
K91082 | K91071; K90550; K96580; K90211 |
K91122 | K91070 |
K91411 | K91071; K90550; K96580; K90211 |
K92265 | K96802-Q |
K93845 | K91071; K90550; K96580; K90211 |
K94371 | K91071; K90550; K96580; K90211 |
K95652 | K91070; K95646 |
K96448 | K90571 |
K96576 | K91070 |
K96695 | K90500; K94720 |
K96961 | K90500; K94720 |
K96963 | K91071; K90550; K96580; K90211 |
K96968 | K90571 |
K97070 | K96802-Q |
K92100 | K90571 |
