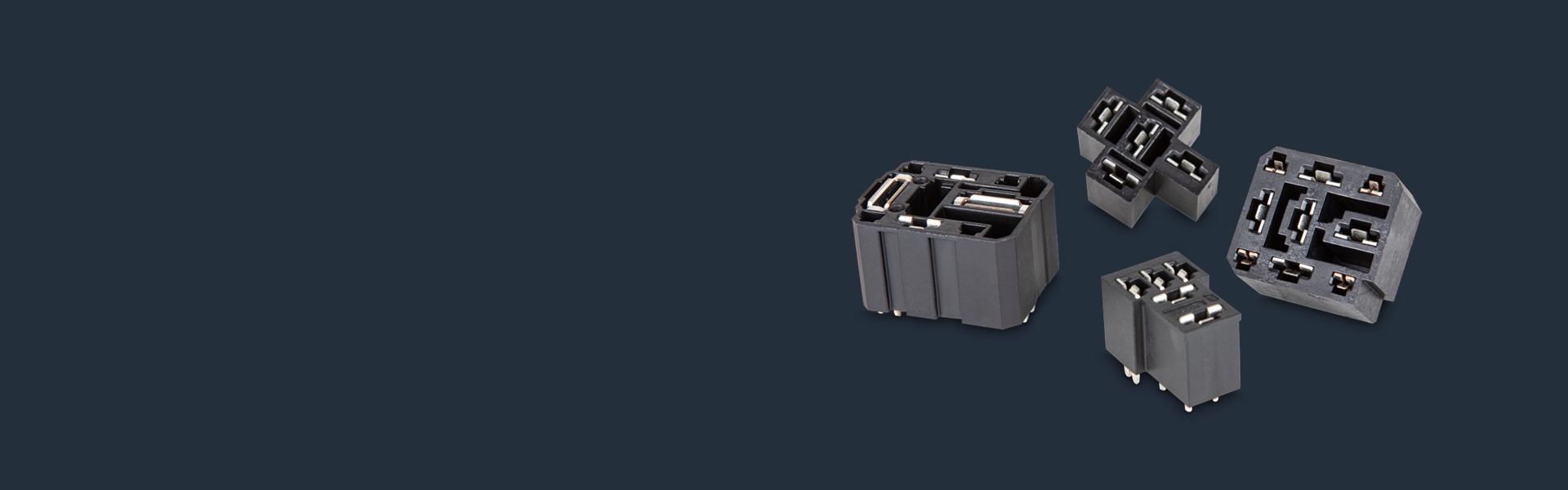

PowerSocket Relay
Ideal for relay contacting
PowerSocket Relay from Würth Elektronik ICS are sockets for mounting electrical components such as relays on printed circuit boards. They form the basis for maintenance-friendly handling of relays and diode modules and are suitable for 12 V, 24 V and 48 V applications.
Thanks to the solid press-fit technology, PowerSockets can be easily and cost-effectively integrated into the process chain. As a result, they are optimally connected to the PCB and are extremely resistant to vibration. The plastic housing also protects the contacts and provides a contact surface for the press-fit tool.
Key information at a glance
Application possibilities
The PowerSocket Relay are used, among other things, for the connection of
- automotive relays with corresponding pin assignment (Micro, ½ ISO, ISO)
- diode modules
- ICCS small controllers from Würth Elektronik ICS
From sample to market
Samples are available even in small quantities. Just tell us what you need!
Packaging
Flexible assembly options:
- Bulk
- Standard packaging
- Trays
Processing options for PowerSocket Relay
MPFT (Massive Press Fit Technology)
Massive press-fit technology is the process of pressing solid pins into an electrically plated-through hole in a printed circuit board. Powerelements for press-fit technology have excellent mechanical and electrical properties, making them ideal for use in harsh environments such as high temperature fluctuations or vibration. The press-fit process creates a high performance, gas-tight cold welded connection with a contact resistance of just a few μOhm. This ensures very high current carrying capacity through low resistance contact points.
PCB design
Printed circuit boards must be designed in accordance with the latest edition of IPC A 600. In the case of solid press-fit technology, the PCBs must be designed in accordance with the Würth Elektronik ICS Press-fit Specification. Special attention should be paid to hole diameter and copper thickness.
Further information
Current carrying capacity
The current carrying capacity of a press-fit connection must always be considered in the context of the overall system. The press-fit zone itself has an extremely low contact resistance, so that the limiting factor is usually to be found in the layout of the PCB or the connection of external supply lines.
Max. permissible contact temperature 130°C (blade contact to PowerSocket contact)
Qualification
PowerSocket Relay have successfully passed the vibration tests and the mechanical shock test in accordance with the ISO 16750-3 standard.
Vibration test according to ISO 16750-3:2012 4.1.2.7 Random Test VII.
Mechanical shock test according to ISO 16750-3:2012 4.2.3 Severity 2.
