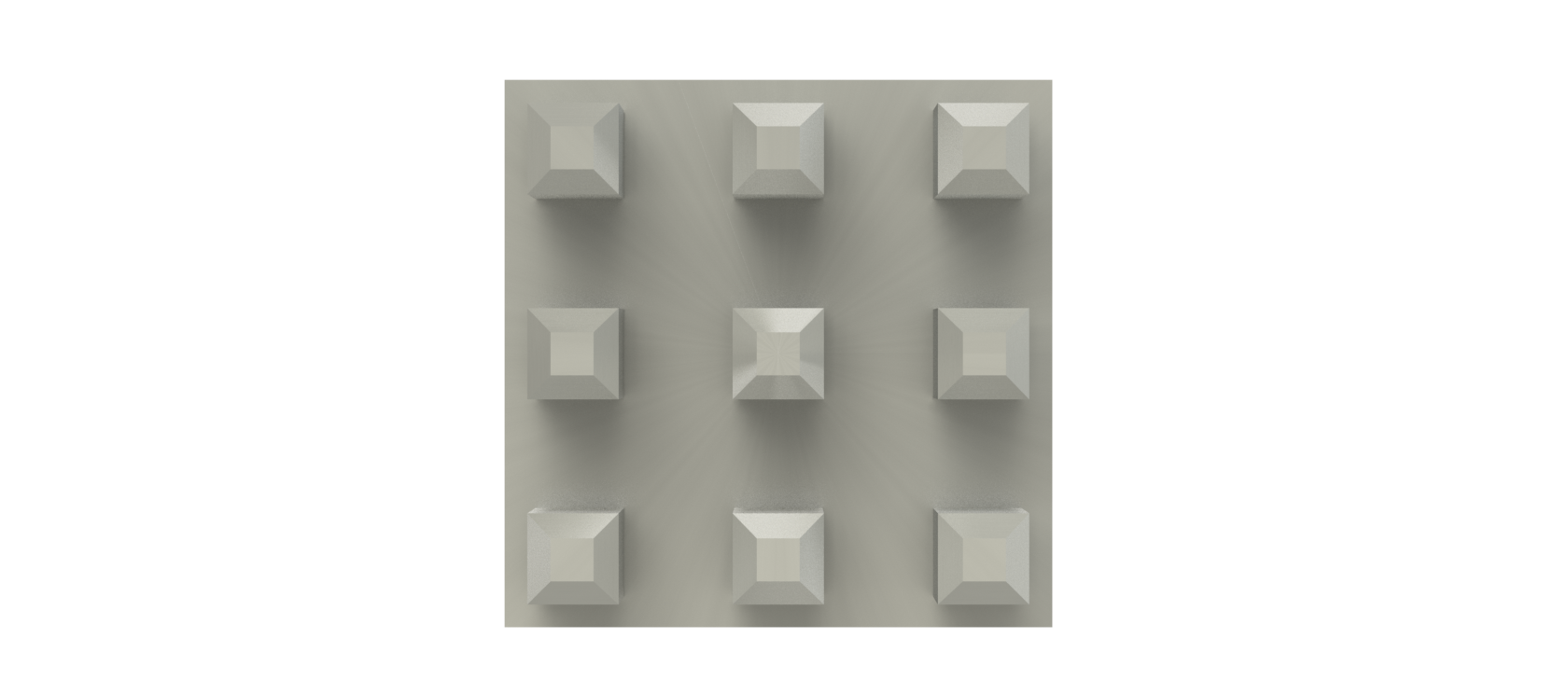

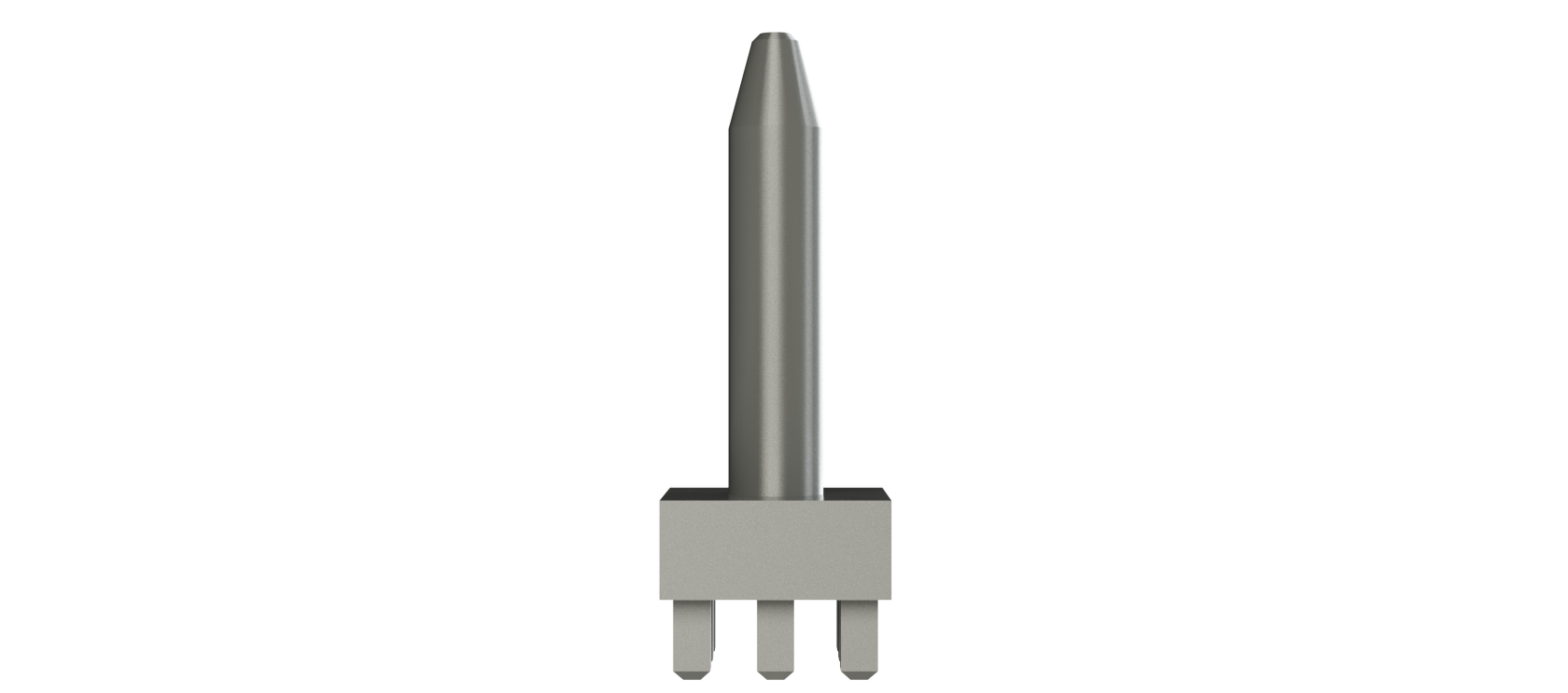

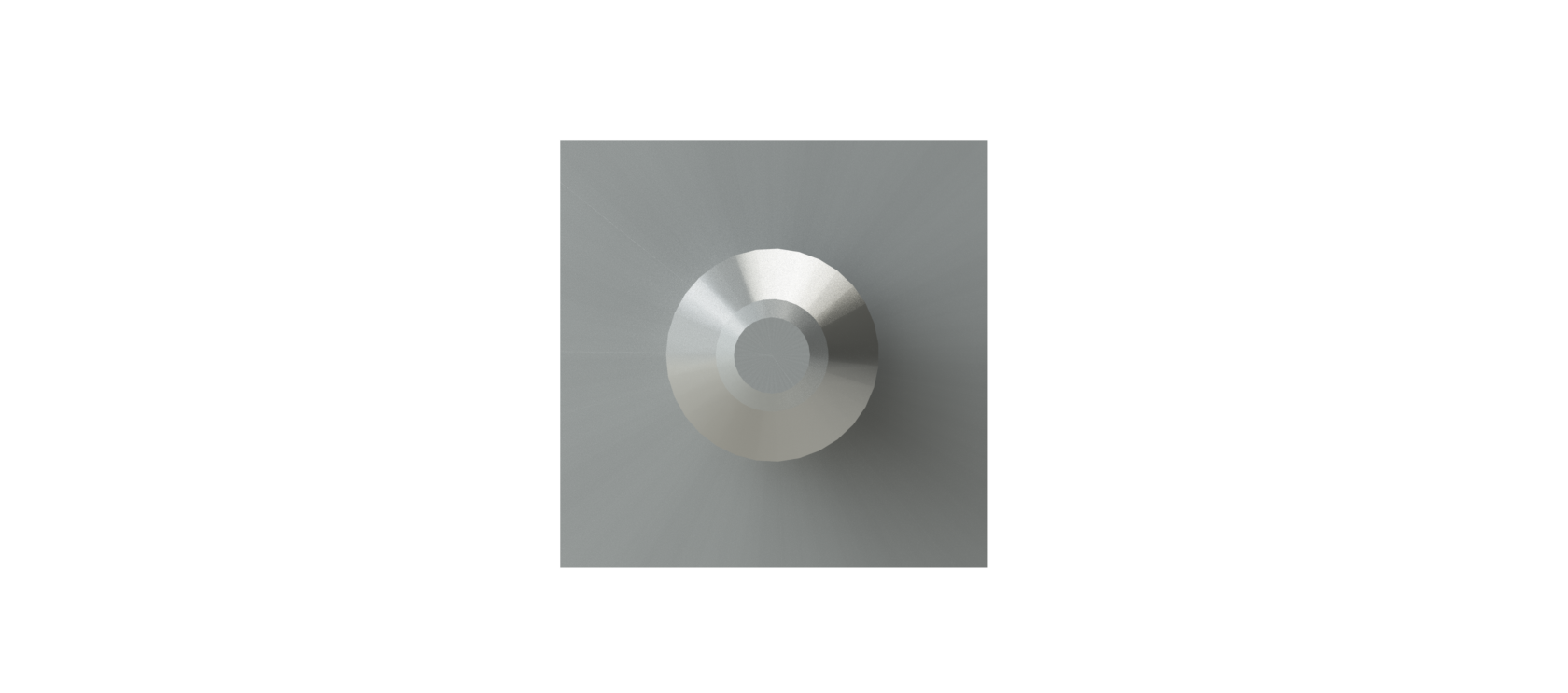

PowerOne Bolt vertical
MEPT - SV 7X7 - D3.00/14.5 - P9/1.60/2.50 v - RM2.54
Item number
K96682
Current carrying capacity per pin (20°C) ~
10.00 A
Current carrying capacity per pin (85°C) ~
6.00 A
Current carrying capacity component (20°C) ~
90.00 A
Current carrying capacity component (85°C) ~
54.00 A
Material
Brass
Surface
tin
Number of pins
9
Packaging unit
1,000 piece
Customs tariff code / HS-Code
85369095
Country of origin
Deutschland
Total height
20.00 mm
Height above pcb
17.50 mm
Thread diameter
3.00 mm
Pedestal length
7.00 mm
Pedestal width
7.00 mm
Pin length
2.50 mm
Pin diagonal
1.60 mm
Pin assembly
Full plain
Grid dimension X
2.54 mm
Grid dimension Y
2.54 mm
Assembly method PCB
Massive Pressfit Techn
Drilling diameter
1.60 mm
Final diameter HAL Surface
1.450 mm
Final diameter Chemical Surface
1.475 mm
